YALE DOOR CLOSER 1-4 DELAYED ACTION
Description

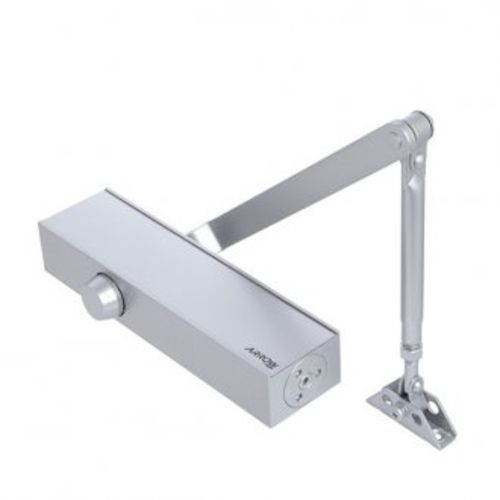

2400 Yale Door Closer
The Yale Arrow A2400 Series door closer will cater for a wide range of applications and door sizes.
Ideally suited to doors in high traffic areas.
With power adjustment range from 2-4 strength.
Slim neat design will complement most applications.
Features
Power adjustment range of closing spring 2 - 4
Power adjustable closer
Backcheck is standard
Heat treated Rack and pinion design
Non-handed
Built in pressure valve
Adjustable closing and latching valves
Parallel arm bracket included
Suitable for door weight up to 40 to 80kg
Suitable for door width up to 1100mm
Maximum closing Torque 13-18Nm
Forged steel arms passivated against corrosion
Each pack contains “Z” Parallel Arm Bracket.
Hold-open between 80° – 180° (hold open arm assembly required and not included)
Fire Rated
This Arrow Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Door sets.
Finish
Silver
NOTE: Hold-open option is not approved on any fire door.
SEE ALSO MN - 8404
