ARIA HANDLE SET LOCKING POPULAR COLOURS
Description

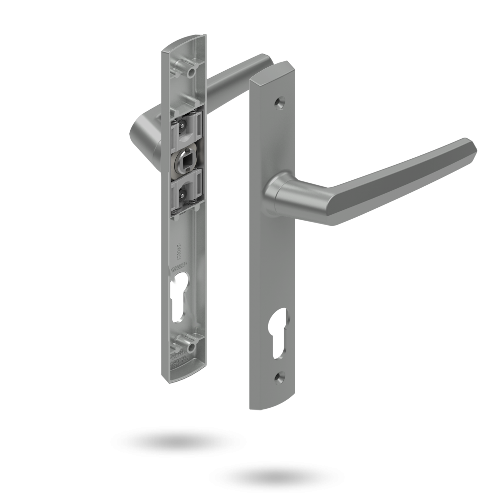

Yale Palladium Aria Lever Set
The Palladium Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.
The Yale Aria is a style developed by ASSA ABLOY that has been fashioned into a contemporary and elegant furniture range. Complementary to modern joinery with its sleek offset centreline, the Yale Aria range is encompassed by a number of ASSA ABLOY window and door hardware products. Available in an array of colour finishes, choosing Yale Aria allows for continuity of aesthetics throughout the home.
Features
Yale Aria lever 27 locking set
Internal and external locking plates with Euro cylinder hole (cylinder not included)
Non-handed
Solid metal lever and escutcheon
Includes 7.6mm square stepped spindle
Visible fixing on internal plate, concealed on external plate
M4 Trilobial thread cutting screws into non-threaded screw posts
Plates are designed to fit back to back to be fully concealed externally
The Palladium Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
Polyester powdercoat finish
Supplied in trade pack
Operation
These are used on the active door of either single or double doors. The outside furniture has concealed fixing, the inside furniture has visible fixings. Either a double cylinder or cylinder and turn will operate the draw bolt and locks the handle. The handle operates the latch on the lock and throws bolts when used with a compatible multi point lock.
Suitability
Residential and semi-commercial buildings, with Yale Optimum and Union mortice locks.
Materials
All plates and levers in the Palladium Series are constructed from solid zinc die-cast.
Door Thickness
Minimum: 32mm
Maximum: 45mm
Plate Dimensions
Hieght: 222mm
Width: 30mm
Depth: 5mm
Pitch: 85mm
Fixing centres: 182mm
Lever Dimensions
Length: 123mm
Projection: 48mm
Finger clearance: 36mm
Finish
Available in the POPULAR or SPEC powdercoat colour range
