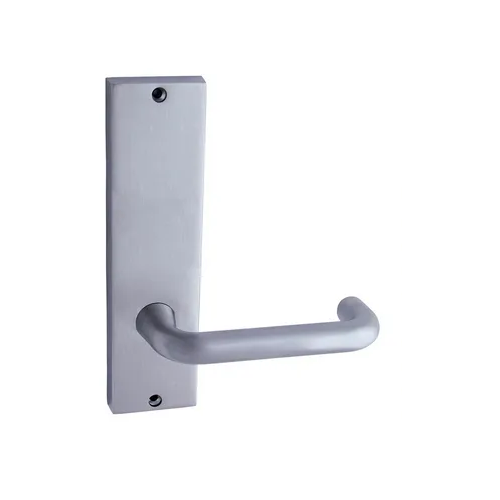

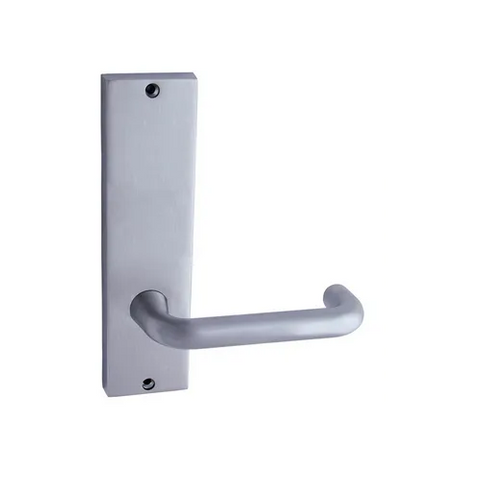

LEGGE ALPHA INTERNAL PLATE WITH LEVER SCP
Description
Legge 700 Series - 712 Alpha Lever on Internal Plate
Made specifically for commercial applications, the Legge 700 series has been designed to live up to the rigours of day to day use. Such applications include interior and exterior doors for educational, government, public, healthcare buildings. The Legge 700 series is constructed from commercial grade quality components, with forged brass levers and plates.
Compatible With Australasian 60 To 127mm Backset Mortice Latch Series
Plates Are Designed To Fit Back To Back I.E. If The External (Ext) Plate Is Specified With Concealed Fixing, Then The Internal (Int) Plate Must Be Visible Fixed.
External Plates Are Supplied With Fixing Screws To Suit Door Thickness Between 32 And 50mm
Lead-times
Satin Chrome Finish
Specifications
Plate Size 172h x 46w x 11d (mm)
Door Thickness 32-50mm
Screw fixing spacing 158mm
Base Material Forged Brass
Pair/Piece/Set Piece
Mechanical Warranty 30 years
See Also MN 156 / 90
