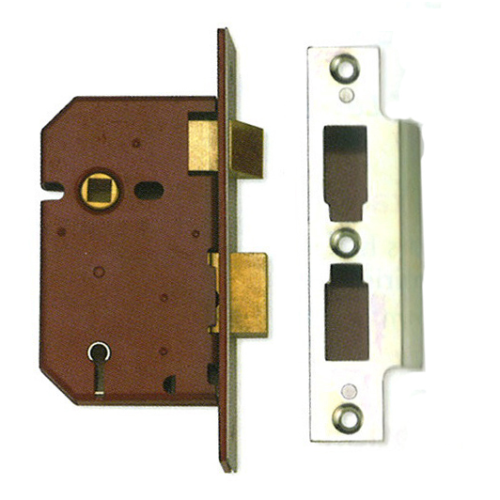

UNION MORTICE LOCK 5 LEVER 76mm CASE DP

Stock Code:
UN Y2201 3.0 PL

Description

APPLICATION

For timber doors hinged on left or right
To suit doors up to 54mm thick

SPECIFICATION

Deadbolt locked or unlocked by key from either side
Latch bolt withdrawn by lever handle from either side
May be keyed alike with 2101 and 2401
Security box striking plate
Easily reversible latch bolt from outside of case

Case Size: 77.5mm (3")
Backset: 57mm
Case: Steel, red powder coat
Deadbolt: Brass, with hardened steel rollers
Latch Bolt: Brass, easily reversible
Follower: Brass, 8mm square

Supplied with 2 steel nickel plated keys
Key Blank Number: KB430
Keying: 600 standard differs (keys are not numbered for security purposes)
Available in SC and PL finishes

FINISH
PL - Polished Brass finish

Rebate Kit: 2989
