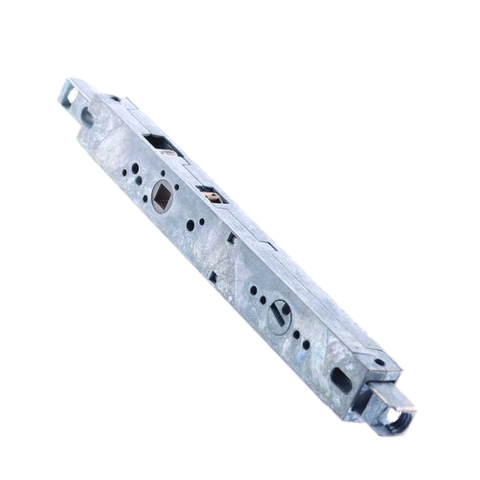

TWIN BOLT LOCKSET ONLY
Description

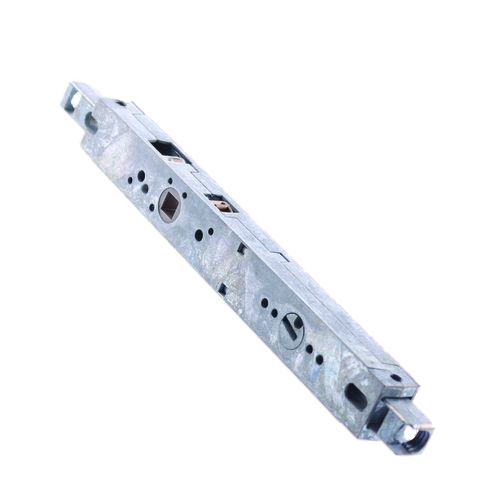

Yale Twin Bolt French Door Lock Set - No Furniture
The Twin Bolt lock body has been designed for use on the passive leaf of a French door. The Twin Bolt combines security features with a practical design, fulfilling the needs created by architectural innovations within the residential and light commercial market.
Suitable for use with aluminium or timber doors.
Can be used with a Palladium or a Verona lever handle for French door applications.
FEATURES
Handle turning angle of 90 degree
Includes 64mm x 7.6mm square spindle
External furniture lever is fixed
Provides two points of security with throw rods top and bottom
Standard rod length 1m + 1.3m available (included)
13mm throw on rods from mortice lock
Threaded rod connection provides easy adjustment
Practical, easy installation
Zinc die-cast construction
Wafer cylinder with Euro escutcheon cover/Non-locking
Can be keyed alike to other ASSA ABLOYCYL locks for one key convenience
Standard moulded plastic packers and fixing screws provided
Supplied in trade pack
New Zealand made
Suitability
Suitable for use on French doors.
Fixing Surfaces
Timber
Metal
Optional Full Kit Includes
Locking Yale Twin Bolt mortice lock (P84131)
Rods 1.0mtr and 1.3mtr
C4 cylinder barrel(MC70)
3.6mm and 14.8mm Twin Bolt cylinder and body packers
Twinbolt Rod Tips (C2807)
Screw pack (100077)
Timbafold Twinbolt timber kit (P84234)
