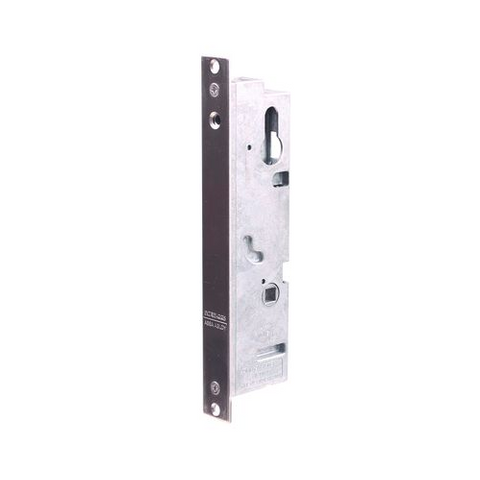

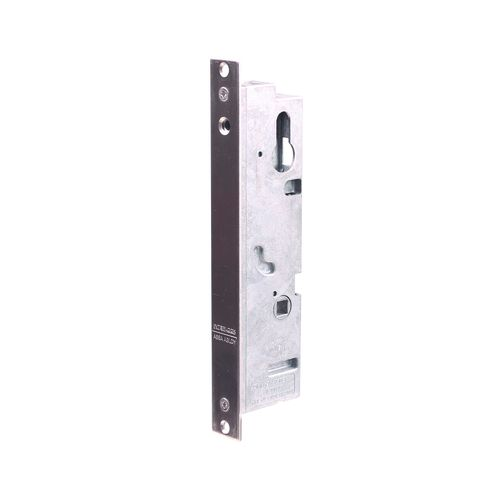

ASSA ABLOY PINNACLE 2PT LOCK BODY 35MM
Description
The Pinnacle lock body has been designed for use on the passive leaf of a French door - 35mm
The Pinnacle combines security features with a practical design, fulfilling the needs created by architectural innovations within the residential and light commercial market. Suitable for use with aluminium or timber doors.
FEATURES
• Suitable for handle for french door kit application
• Standard rod length 1 x 1m + 1 x 1.3m. (supplied seperately)
• Provides two points of security with throw rods top and bottom (13mm throw)
• Practical, easy installation
• Zinc die-cast construction
• Standard moulded plastic packers and fixing screws provided
• Threaded rod connection provides easy adjustment
• Handle turning angle of 90°
• Pinnacle lock body features internal locking only, with a C4 compatible cylinder •
The Pinnacle - French Door option is available as a complete kit which includes the lock body, lock rods, handle set, aluminium suite screws, packers and drive bar
• Can be keyed alike to other ASSA ABLOY CYL4TM locks for one key convenience
• Can be used with a Palladium for French door applications
• Both handles available in a wide range of powdercoat colours and satin chrome finish
• Multipoint rod extension kit available
• Composite suite packer and screw pack also available
